MODEL:
PT-3025P1

@

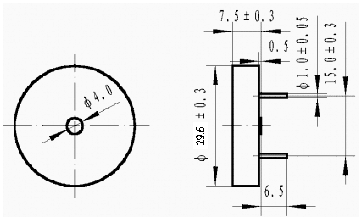

Dimension:

Electrical   Characteristics:
Model No. PT-3025P1
Rated Voltage (Vp-p) 10
Operating Voltage (Vp-p) 130
Resonant Frequency (Hz) 2500500
Capacitance 120Hz (pF) 2000030%
*Sound Output at 10cm (dB) ≥85
*Current Consumption (mA) 5max
Operating Temperature (J) -20+70
Storage Temperature (J) -30+80
Weight (g) 4.2
Case material and colour PBT/Black
*Applying rated voltage (Resonant frequency, Square wave)

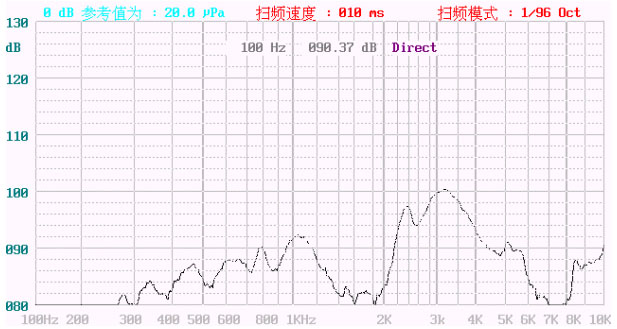

Frequency  Response:
@
@
@
