MODEL:
PT-4409W

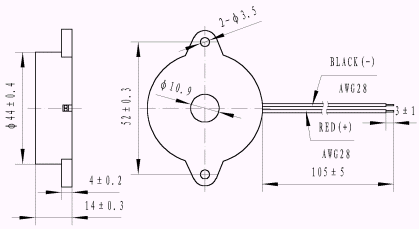

Dimension:
Electronic Specifications:
Model No. PT-4409W
Rated Voltage (Vp-p) 12
Operating Voltage (Vp-p) 130
Resonant Frequency (Hz) 900500
Capacitance 120Hz (pF) 7000030%
*Sound Output at 10cm (dB) ≥85
*Current Consumption (mA) 5max
Operating Temperature (J) -20+60
Storage Temperature (J) -30+70
Weight (g) 11.5
Case material and colour ABS/Black
*Applying rated voltage (Resonant frequency, Square wave)

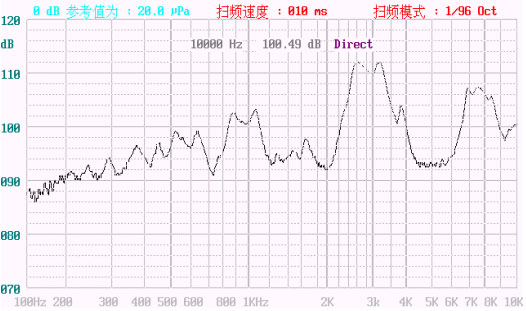

Frequency  Response:
@
@
@
