MODEL:
PT-5220P

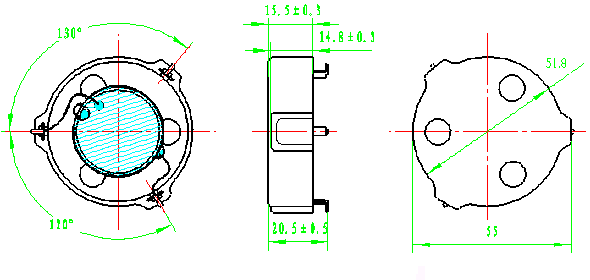

Dimension:

Electrical   Characteristics:
Model No. PT-5220P
Rated Voltage (Vp-p) 18
Allowable lnput Voltage (Vp-p) 60
Resonant Frequency (Hz) 20004000
Capacitance 120Hz (pF) 25000030%
*Sound Output at 300cm (dB) ≥95
Operating Temperature (J) -20 +105
Weight (g) 14
Case material and colour PA6/Black
*Applying rated voltage (Resonant frequency, Square wave)
@
@
@
@
