MODEL:
PT-2236FP

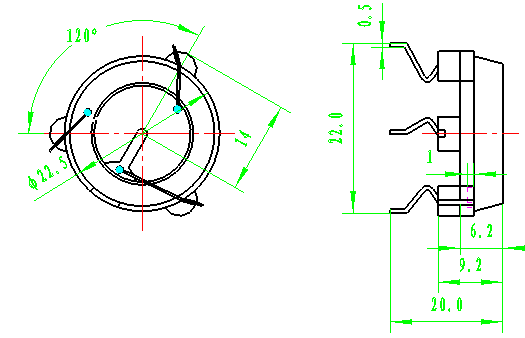

Dimension:
Electrical   Characteristics:
Model No. PT-2236FP
Rated Voltage (VDC) 12
Operating Voltage (VDC) 320
*Rated Current (mA) 12max
*Sound Output at 10 cm (dB) ≥85
*Resonant Frequency (Hz) 3600300
Operating Temperature (J) -20 +70
Storage Temperature (J) -30 +80
Weight (g) 1.8
Case material and colour ABS/Gray
*Value applying rated voltage (DC)
@
@
@
@
