MODEL:
EB-9627P

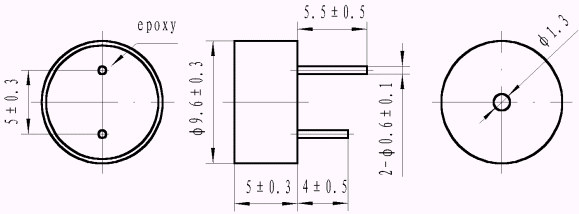

Dimension:
Electrical   Characteristics:
Model No. EB-9627PA EB-9627P
Rated Voltage (VDC) 3 5
Operating Voltage (VDC) 24 37
*Resonant Frequency (Hz) 2700300
*Sound Output at 10cm (dB) ≥75 ≥85
*Current Consumption (mA) 30max
Operating Temperature (J) -25+70
Storage Temperature (J) -30+80
Weight (g) 0.8
Case material and colour PPO / Black
*Applying rated voltage (VDC)
Voltage/ Current/ Sound Pressure:
@
@
@
