MODEL:
ET-1227P

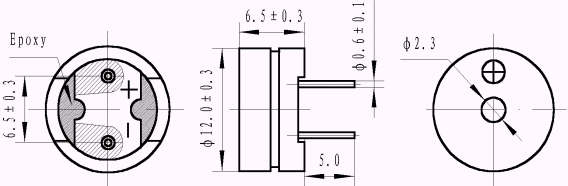

Dimension:
Electrical   Characteristics:
Model No. ET-1227P
Rated Voltage (Vo-p) 3
Operating Voltage (Vo-p) 24
Resonant Frequency (Hz) 2700
Coil Resistance (ohm) 303
*Sound Output at 10cm (dB) ≥80
*Rated Current (mA) ≤50
Operating Temperature (J) -20+60
Storage Temperature (J) -30+70
Weight (g) 1.5
Case material and colour PPO / Black
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

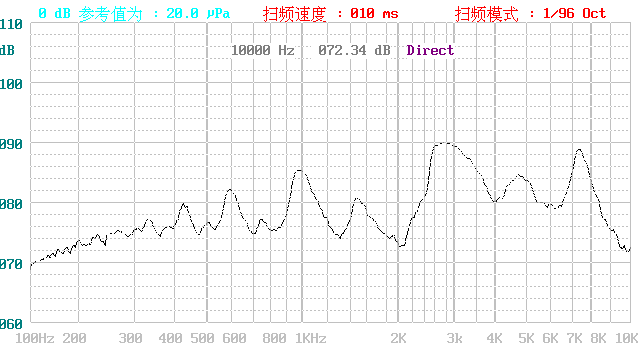

Frequency  Response:
@
@
@
