Piezo Buzzer Piezo Transducer Piezo Element Magnetic Buzzer Magnetic Transducer SMD Buzzer/transducer Speaker

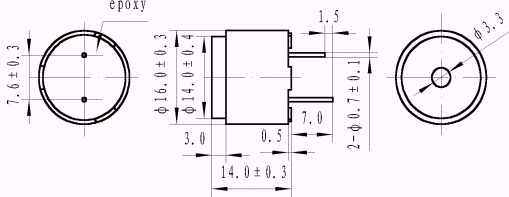

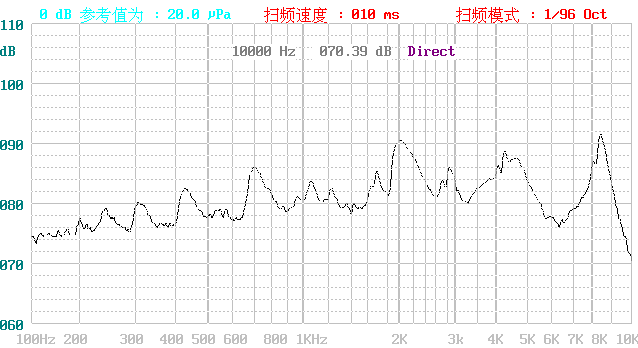

CONTACT  US                        ¤¤¤åª©    ¡@ MODEL: ET-1620P Dimension: Electrical   Characteristics: Model No. ET-1620P Rated Voltage (Vo-p) 5 Operating Voltage (Vo-p) 4¡ã8 Resonant Frequency (Hz) 2048 Coil Resistance (ohm) 50¡Ó5 *Sound Output at 10cm (dB) ≥85 *Rated Current (mA) 40max Operating Temperature (¢J) -20¡ã+70 Storage Temperature (¢J) -30¡ã+80 Weight (g) 4.6 Case material and colour PPO / Black *Applying rated voltage (Resonant frequency, 1/2 duty, Square wave) Frequency  Response:  ¡@ ¡@

¡@
