MODEL:
ET-1324S

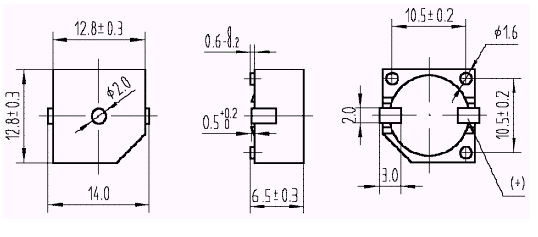

Dimension:

Electrical   Characteristics:
Model No. ET-1324S
Rated Voltage (Vo-p) 5
Operating Voltage(Vo-p) 4¡ã7
Coil Resistance(ohm) 45¡Ó4
Resonant Frequency(Hz) 2400¡Ó500
*Sound Output at 10cm(dB) ≥88
*Rated Current (mA) 50max
Operating Temperature(¢J) -30¡ã+85
Storage Temperature(¢J) -40¡ã+90
Weight(g) 2
Case material and colour PPS/Black
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)
Frequency  Response:
¡@
¡@
¡@
