MODEL:
EB-1323S1

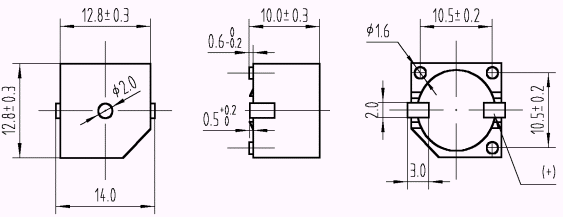

Dimension:
Electrical   Characteristics:
Model No. EB-1323S1 EB-1323S1A
Rated Voltage (VDC) 5 12
Operating Voltage (VDC) 4¡ã7 7¡ã15
*Resonant Frequency (Hz) 2300¡Ó300
*Sound Output at 10cm (dB) ≥85 ≥87
*Current Consumption (mA) 20max
Operating Temperature (¢J) -30¡ã+85
Storage Temperature (¢J) -40¡ã+90
Weight (g) 2.9
Case material and colour PPS/Black
*Applying rated voltage (VDC)

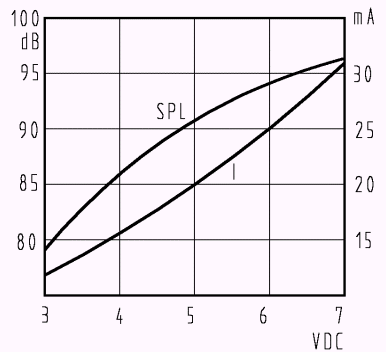

Voltage/ Current/ Sound pressure:
¡@
¡@
¡@
