MODEL:
PT-1241S

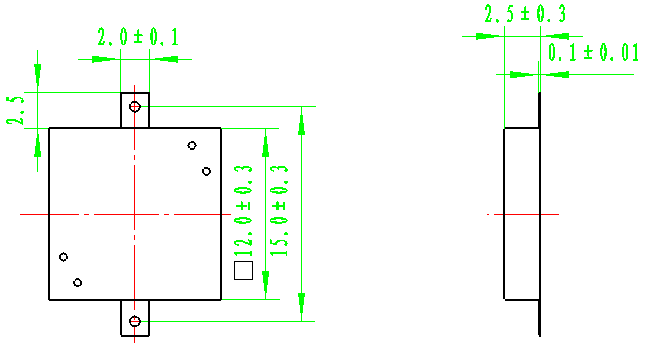

Dimension:
Electrical   Characteristics:
Model No. PT-1241S
Rated Voltage (Vp-p) 9
Operating Voltage (Vp-p) 1¡ã25
Resonant Frequency (Hz) 4100¡Ó500
Static Capacitance at1KHz (PF) 15000¡Ó30%
*Sound Output at 10cm (dB) ≥80
*Current Consumption (mA) 3max
Operating Temperature (¢J) -20¡ã+70
Storage Temperature (¢J) -30¡ã+80
Weight (g) 0.5
Case material and colour PPS/Black
*Applying rated voltage (Resonant frequency, Square wave)

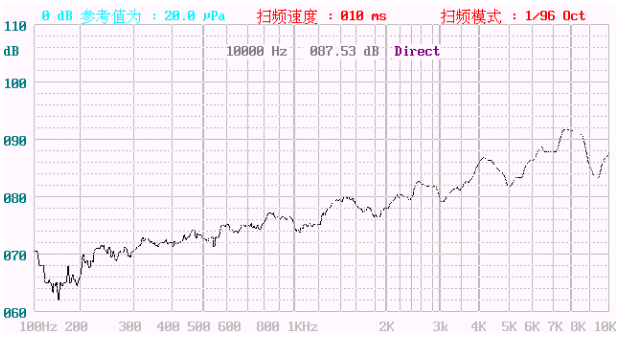

Frequency  Response:
¡@
¡@
¡@
