MODEL:

EB-1323S

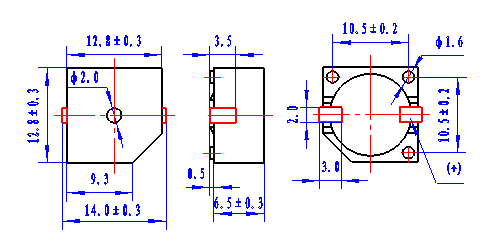

Dimension:

Electrical Characteristics:

Part Number	EB-1323S
Rated Voltage (VDC)	5
Operating Voltage (VDC)	4～7
*Current Consumption (mA)	30max
*Sound Output at 10cm (dB)	≥85
Resonant Frequency (Hz)	2300±400
Operating Temperature (℃)	-20～+70
Storage Temperature (℃)	-30～+80
Weight (g)	2
Case material	PPS
*Value applying at rated voltage

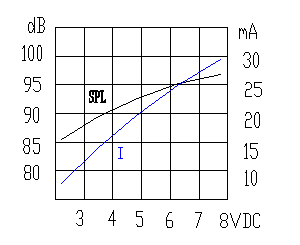

Voltage/ Current/ Sound Pressure:
