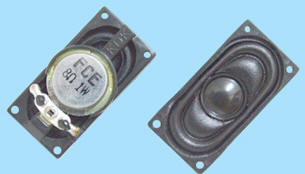

MODEL:
D2040CP08E-1 GP

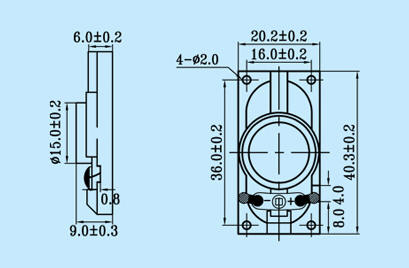

Dimension:

Electrical   Characteristics:
MODEL D2040CP08E-1 GP
Impedance 8
Rated input 1.0
Max.input 2.0
Resonance Frequency 630126
Frequency Response 35020K
Sound Pressure Level 813/1w 1m
Materials Plastics

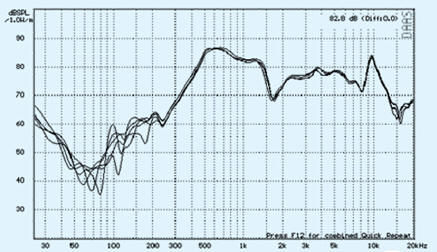

Frequency  Response:

@
@
@
