MODEL:
DF23P03Q

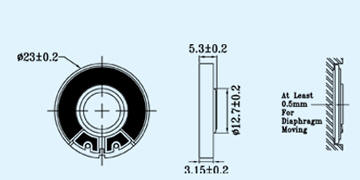

Dimension:

Electrical   Characteristics:
MODEL DF23P03Q
Impedance 200
Rated input 0.01
Max.input 0.02
Resonance Frequency 35070
Frequency Response 18020K
Sound Pressure Level 873/1mw 1cm
Materials Plastics

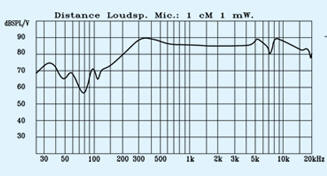

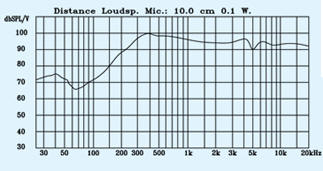

Frequency  Response:

@
@
@
