MODEL:
DF40P67H

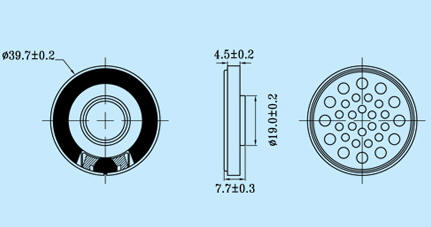

Dimension:

Electrical   Characteristics:
MODEL DF40P67H
Impedance 32
Rated input 0.03
Max.input 0.05
Resonance Frequency 15030
Frequency Response 8020K
Sound Pressure Level 1013/1mw 1cm
Materials Plastics

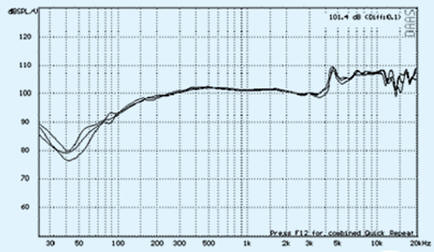

Frequency  Response:

@
@
@
