MODEL:
MI9745L

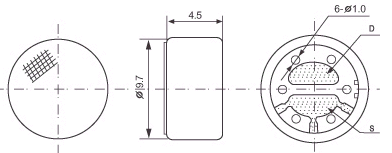

Dimension:
Electrical   Characteristics:
Sensitivity -473dB(0dB=1V/Pa,1KHz)
Impedance 680[-30%
Directivity Unidirectional
Difference from 0X to 180X(1kHz) >14dB
Frequency 100-16,000Hz
Max,operation Voltage 10V
Standard Operation Voltage 1.5V
Current consumption Max,0.5mA
Sensitivity reduction Within-3dB at 1V
S/N ratio More than 58dB(56dB)

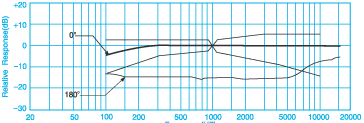

Characteristics:
@
@
@
