MODEL:
ET-7527S

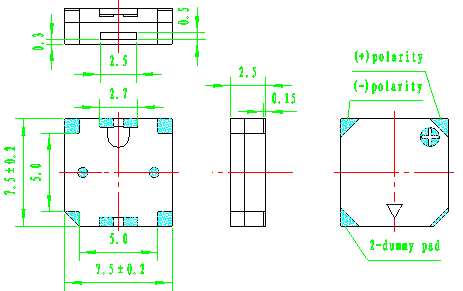

Dimension:

Electrical   Characteristics:
Model No. ET-7527S
Rated Voltage (V) 3.6
Operating Voltage (V) 2.5¡ã4.5
Coil Resistance (£[) 15¡Ó3
Resonant Frequency (Hz) 2700
*Sound Output at 10cm (dB) ≥85¡@
*Current Consumption (mA) 100max
Operating Temperature (¢J) -40¡ã+85
Storage Temperature (¢J) -40¡ã+85
Case material and colour PPS/Black

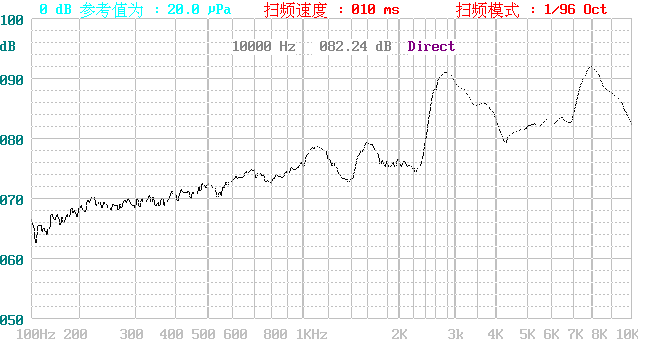

Frequency  Response:

¡@
¡@
¡@
