MODEL:
PT-1830S

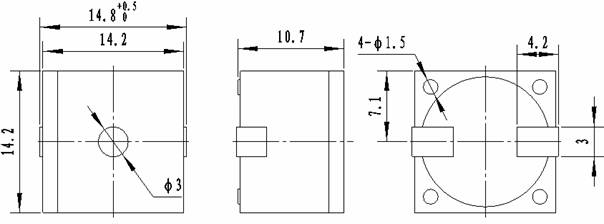

Dimension:

Electrical   Characteristics:
Model No. PT-1830S
Rated Voltage (Vp-p) 10
Operating Voltage (Vp-p) 130
Resonant Frequency (Hz) 3000500
Capacitance 100Hz (pF) 2800030%
*Sound Output at 10cm (dB) ≥86
*Current Consumption (mA) 7max
Operating Temperature (J) -20+70
Storage Temperature (J) -30+80
Weight (g) 4.0
Case material and colour LCP/Black
*Applying rated voltage (Resonant frequency, Square wave)

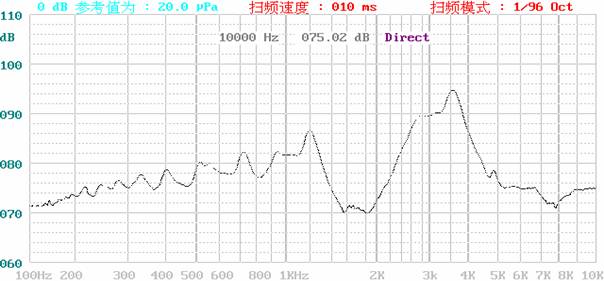

Frequency  Response:

@

@
@
@
