MODEL:
LPB-1543S

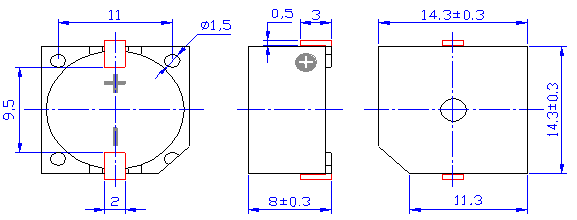

Dimension:

Electrical   Characteristics:
Model No. LPB-1543S LPB-1543SA
Rated Voltage (VDC) 5 12
Operating Voltage (VDC) 316 316
Resonant Frequency (Hz) 4300500 4300500
Coil Resistance (ohm) 5.51 404
*Sound Output at 10cm (dB) ≥80 ≥85
*Rated Current (mA) 8max 8max
Operating Temperature (J) -20+70
Storage Temperature (J) -30+80
Weight (g) 2.3
Case material and colour PPO / Black
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

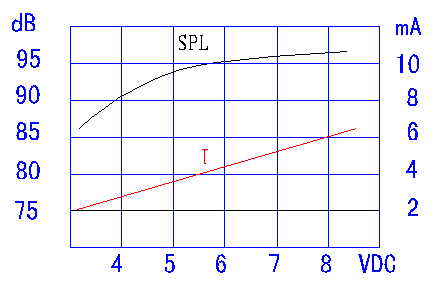

Voltage/ Current/ Sound pressure:

@
@
@
