MODEL:
ET-5040S1

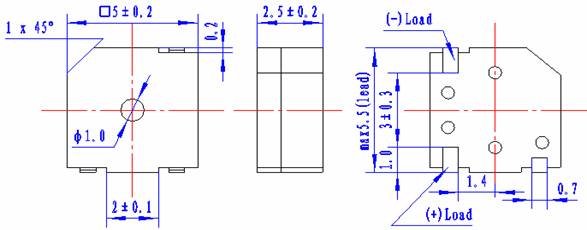

Dimension:

Electrical   Characteristics:
Model No. ET-5040S1
Rated Voltage (Vp-p) 3
Operating Voltage (Vp-p) 25
Resonant Frequency (Hz) 4000
Coil Resistance (ohm) 123
*Sound Output at 10cm (dB) ≥75
*Current Consumption (mA) 100max
Operating Temperature (J) -25+70
Storage Temperature (J) -30+80
Weight (g) 0.3
Case material and colour LCP/Black
*Applying rated voltage (Resonant frequency, Square wave)

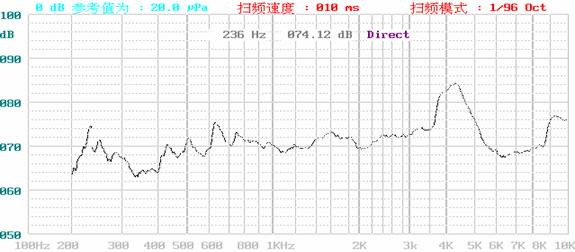

Frequency  Response:
@
@
@
@
