MODEL:
ET-1427S

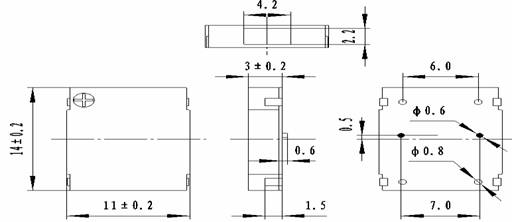

Dimension:

Electrical   Characteristics:
Model No. ET-1427S
Rated Voltage (Vp-p) 5
Operating Voltage (Vp-p) 37
Resonant Frequency (Hz) 2731
Coil Resistance (ohm) 404
*Sound Output at 10cm (dB) ≥90
*Current Consumption (mA) 50max
Operating Temperature (J) -25+70
Storage Temperature (J) -30+80
Weight (g) 1.0
Case material and colour LCP/Black
*Applying rated voltage (Resonant frequency, Square wave)
Frequency  Response:

@
@
@
