MODEL:
ET-1028S

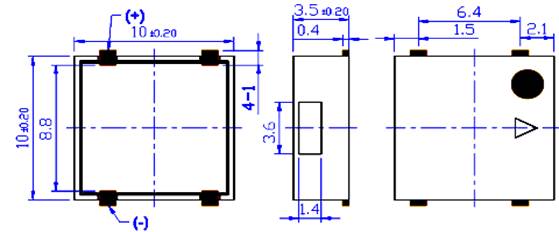

Dimension:

Electrical   Characteristics:
Model No. ET-1028S
Rated Voltage (Vp-p) 3.6
Operating Voltage (Vp-p) 24
Resonant Frequency (Hz) 2830
Coil Resistance (ohm) 183
*Sound Output at 10cm (dB) ≥85
*Current Consumption (mA) 80max
Operating Temperature (J) -25+70
Storage Temperature (J) -30+80
Weight (g) 0.6
Case material and colour LCP/Black
*Applying rated voltage (Resonant frequency, Square wave)

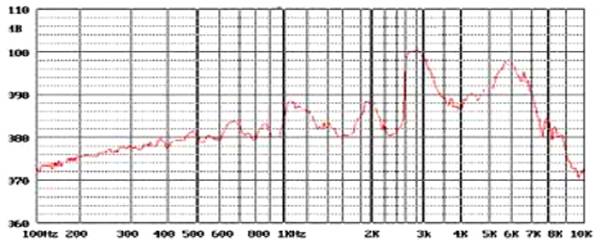

Frequency  Response:
@
@
@
