MODEL:
EB-9027P

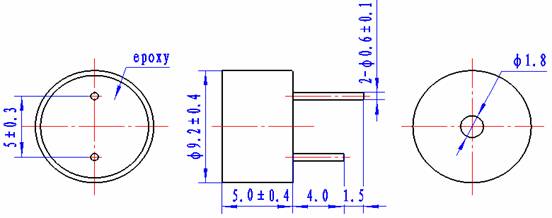

Dimension:

Electrical   Characteristics:
Model No. EB-9027P
Rated Voltage (VDC) 5
Operating Voltage (VDC) 37
Resonant Frequency (Hz) 2700300
*Sound Output at 10cm (dB) ≥83
*Current Consumption (mA) 30max
Operating Temperature (J) -20+70
Storage Temperature (J) -30+80
Weight (g) 1
Case material and colour LCP/Black
*Applying rated voltage (Resonant frequency, Square wave)

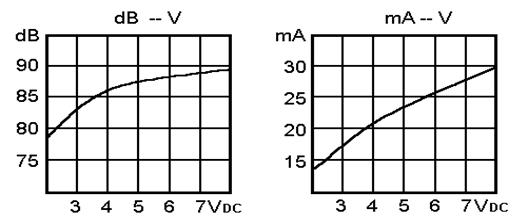

Frequency  Response:

@
@
@
