MODEL:
ET-9032S

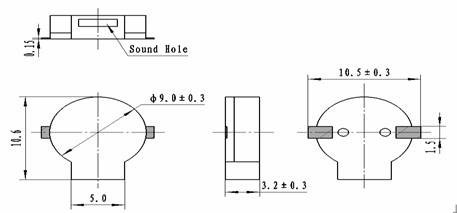

Dimension:

Electrical   Characteristics:
Model No. ET-9032S
Rated Voltage (Vp-p) 3
Operating Voltage (Vp-p) 24
Resonant Frequency (Hz) 3200
Coil Resistance (ohm) 163
*Sound Output at 10cm (dB) ≥90
*Current Consumption (mA) 100max
Operating Temperature (J) -20+70
Storage Temperature (J) -30+80
Weight (g) 0.8
Case material and colour LCP/Black
*Applying rated voltage (Resonant frequency, Square wave)

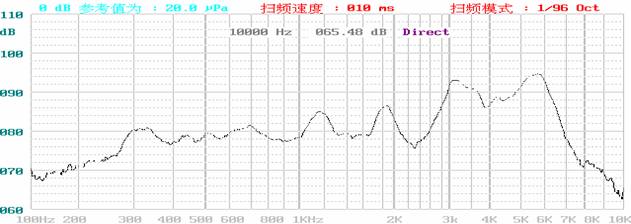

Frequency  Response:
@
@
@
