MODEL:
PBC2438P

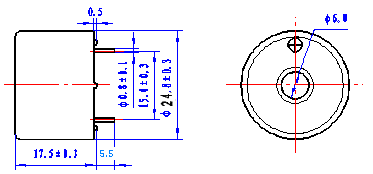

Dimension:

Electrical   Characteristics:
Model No. PBC2438P
Rated Voltage (VDC) 12
Operating Voltage (VDC) 3¡ã20
*Rated Current (mA) 12max
*Sound Output at 10cm (dB) ≥95
*Resonant Frequency (KHz) 3.8¡Ó0.5
Operating Temperature (¢J) -30 ¡ã +80
Storage Temperature (¢J) -40 ¡ã +90
Weight (g) 4.7
Case material and colour PBT/Black
*Value applying rated voltage (DC)
Voltage/ Current/ Sound Pressure:
¡@
¡@
¡@
