MODEL:
PBC3035P

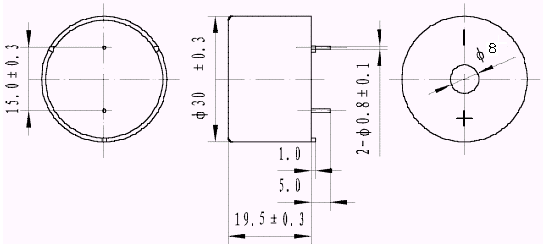

Dimension:
Electrical   Characteristics:
Model No. PBC3035P
Rated Voltage (VDC) 12
Operating Voltage (VDC) 3¡ã20
*Rated Current (mA) 12max
*Sound Output at 30cm (dB) ≥95
*Resonant Frequency (KHz) 3.5¡Ó0.5
Operating Temperature (¢J) -30¡ã+85
Storage Temperature (¢J) -40¡ã+90
Weight (g) 8
Case material and colour PBT/Black
*Value applying rated voltage (DC)
¡@
¡@
¡@
¡@
¡@
