MODEL:
PBC3035W

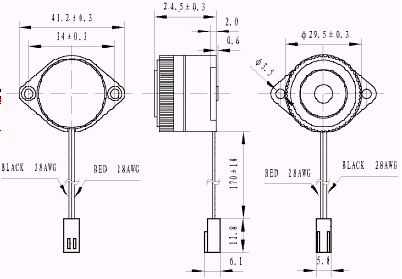

Dimension:

Electrical   Characteristics:
Model No. PBC3035W
Rated Voltage (VDC) 12
Operating Voltage (VDC) 324
*Rated Current (mA) 15max
*Sound Output at 30cm (dB) ≥95
*Resonant Frequency (KHz) 3.50.5
Operating Temperature (J) -20 +70
Storage Temperature (J) -30 +80
Weight (g) 11.8
Case material and colour ABS/Black
*Value applying rated voltage (DC)

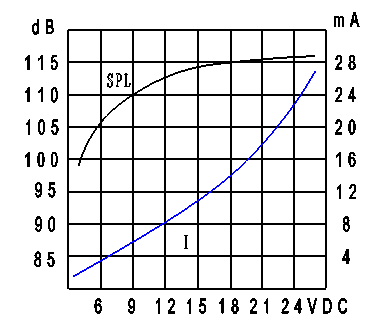

 Voltage/ Current/ Sound Pressure:
@
@
@
