MODEL:
PT-2430P1

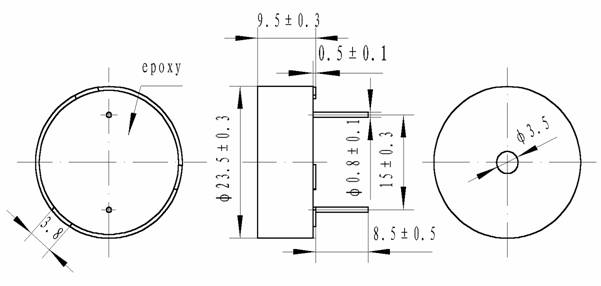

Dimension:

Electrical   Characteristics:
Model No. PT-2430P1
Rated Voltage (Vp-p) 5
Operating Voltage (Vp-p) 130
Resonant Frequency (Hz) 3000500
*Sound Output at 10cm (dB) ≥85
*Capacitance at 100Hz 1V (pF)   2600030%@
*Current Consumption (mA) 2max
Operating Temperature (J) -20+70
Storage Temperature (J) -30+80
Weight (g) 3.5
Case material and colour LCP/Black
*Applying rated voltage (Resonant frequency, Square wave)

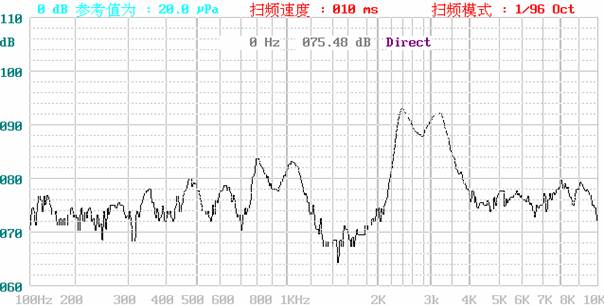

Frequency  Response:

@
@
@
