MODEL:
PBC4228W

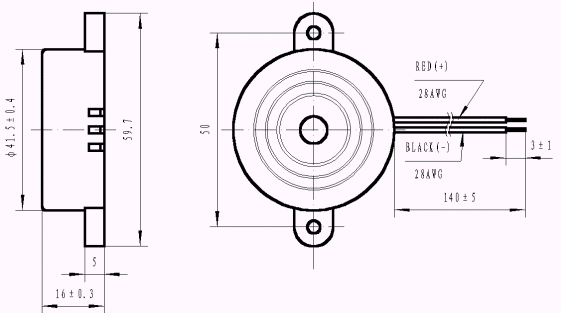

Dimension:

Electrical   Characteristics:
Model No. PBC4228W PBC4228WA
Rated Voltage (VDC)

   12

Operating Voltage (VDC)

320

*Rated Current (mA) 30max 20max
*Sound Output at 10cm (dB)

≥100

*Resonant Frequency (KHz)

2.80.5

Tone Continuous Lntermittent
Operating Temperature (J)

-20 +65

Storage Temperature (J)

-30 +70

Weight (g)

13

Case material and colour

ABS/Black

*Value applying rated voltage (DC)
@
@
@
@
@
