MODEL:
PT-1448W

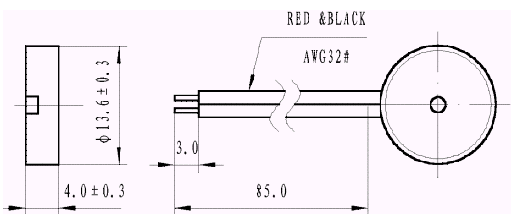

Dimension:

Electrical   Characteristics:
Model No. PT-1448W
Rated Voltage (Vp-p) 3
Operating Voltage (Vp-p) 125
Resonant Frequency (Hz) 4800500
Capacitance 120Hz (pF) 1500030%
*Sound Output at 10cm (dB) ≥78
*Current Consumption (mA) 2max
Operating Temperature (J) -20+60
Storage Temperature (J) -30+70
Weight (g) 0.8
Case material and colour ABS/Black
*Applying rated voltage (Resonant frequency, Square wave)
Frequency  Response:
@
@
@
